Cine Power 575W-800W AC Ballast

HOME > PRODUCTS > BALLASTS > 575-800W AC BALLAST

Compact, dual output, 575W - 800W Flickerless AC Ballast - Designed to power high intensity daylight discharge lamps.

Suitable for a wide range of lampheads.

Key Features :

DOUBLE OUTPUT (Only one at a time.)
LAMP COLOUR TEMPERATURE INDICATION
ADVANCED DESIGN FOR MAXIMISED LAMP LIFE
TRUE POWER REGULATION FOR CONSTANT LIGHT OUTPUT
FLICKERFREE CRYSTAL CONTROLED OUTPUT
CONSTANT COLOUR TEMPERATURE
INSTANT HOT-RESTRIKE CAPABILITY
ULTRA QUIET OPERATION
DIMMABLE FROM ~60% - 100% WITH CONSTANT COLOUR TEMPERATURE
SUPPORTS 2 OR 3 WIRE IGNITORS
SUPPORTS LAMPHEADS WITH OR WITHOUT ON/OFF SWITCHES
RUGGED, COMPACT AND LIGHTWEIGHT CONSTRUCTION

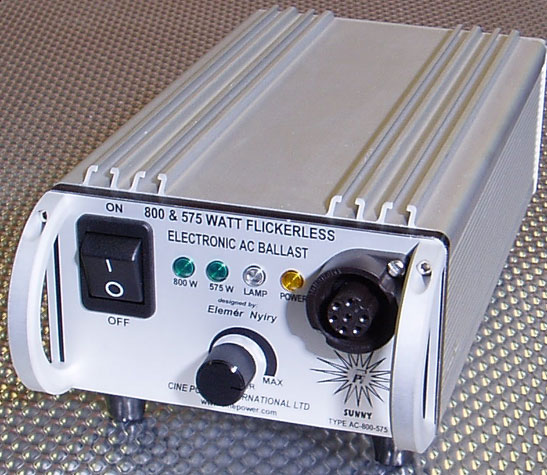

The front panel is clearly presented with indicators for AC Power, Lamp Type, and Lamp Colour Temperature. Ballast output power is dimmable by up to 60% in each power range.

Power is supplied to the Ballast via a universally used IEC 3 pole connector, mounted on the rear of the unit.

The ballast can be used free standing, or an optional Click-Lock docking accessory can be fitted to permit easy fitting to a lamp stand if required.

Primary cooling is achieved with an ultra quiet fan utilising true proportional control using thermal feedback to ensure long fan life and minimum noise. Secondary cooling is achieved via the Ballast housing, extruded in aluminium.

For your safety the unit has been designed, constructed, and tested to stringent European CE and American UL Safety and EMC Standards. Custom versions of this Ballast are available on request.

Please do not hesitate to contact us with your requirements, or to discuss your lighting equipment needs.
