Cine Power 400W / 800W DC Battery Ballast

HOME > PRODUCTS > BALLASTS > 400W / 800W DC BALLAST

A compact 400 / 800W Flickerless DC Ballast designed to power high intensity daylight lamps.

Designed to operate from a low impedance DC power source - like a NiCd or NiMH battery. It is also suitable for a wide range of lampheads available on the market.

Key Features :

DUAL OUTPUT ONLY ONE OUTPUT ON AT A TIME
HIGHLY EFFICIENT DESIGN - GIVING YOU MORE LIFE OUT OF YOUR BATTERY
ADVANCED DESIGN FOR MAXIMISED LAMP LIFE
TRUE POWER REGULATION FOR CONSTANT LIGHT OUTPUT
FLICKERFREE CRYSTAL CONTROLED OUTPUT
CONSTANT COLOUR TEMPERATURE
INSTANT HOT-RESTRIKE CAPABILITY
QUIET OPERATION
DIMMABLE FROM 60% - 100% OUTPUT
SUPPORTS ALL LAMP TYPES
SUPPORTS 2 OR 3 WIRE IGNITORS
SUPPORTS LAMPHEADS WITH OR WITHOUT ON/OFF SWITCHES
RUGGED, COMPACT AND LIGHTWEIGHT CONSTRUCTION

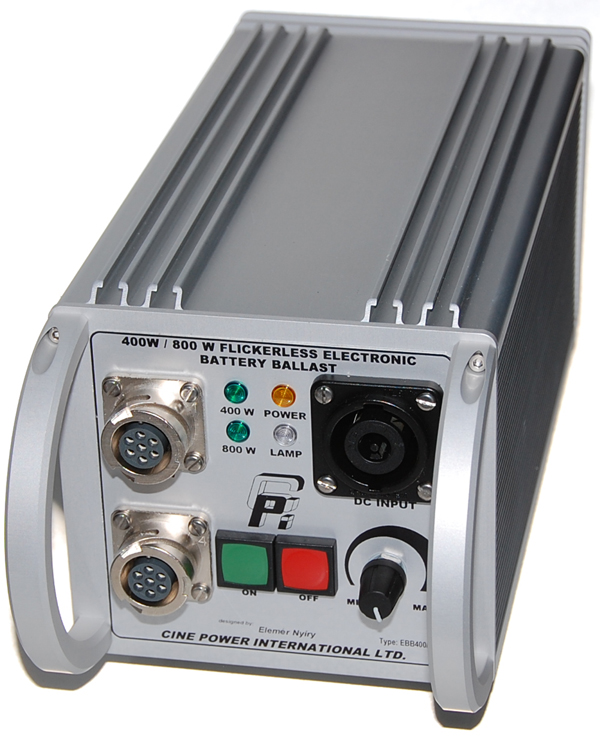

The front panel is clearly presented with indicators for DC Power, and Lamp Type. A Lamp Ready indicator will show when the lamp has reached colour temperature. Ballast output power is dimmable by up to 40% in each power range. Two soft touch switches offer a convenient lamp On/Off control, ideal for remotely mounted lampheads.

Power is supplied to the Ballast via a removable cable to the front panel. The ballast can be used free standing, or an optional Click-Lock docking accessory can be fitted to permit easy fitting to a battery, battery belt or lamp stand if required.

Primary cooling is achieved with an ultra quiet fan system utilising true proportional control using thermal feedback to ensure long fan life and minimum noise. Secondary cooling is achieved via the Ballast housing, extruded in aluminium, which can be anodised in a range of colours.

For your safety the unit has been designed, constructed, and tested to stringent European CE and American UL Safety and EMC Standards. Custom versions of this Ballast are available on request. Please do not hesitate to contact us with your requirements, or to discuss your lighting equipment needs.
