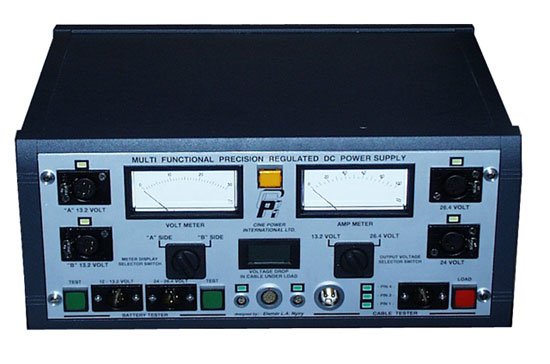

Bench Power Supply



Multi-Function Power Supply

Extremely versatile Multi-Function Precision Regulated Power Supply, with a wide range useful features. Ideal for bench technician use.


Features:
  • Multiple, independent outputs.

  • Cable tester.

  • Continuous output monitoring.


  • Battery tester.

  • Practical and intuitive user interface.

  • Power factor corrected.


Specifications:
  • Input Voltage : 90-260 V AC Auto-ranging input.

  • Input Frequency : 50 - 60 Hz

  • Max. Input Power : 450 W

  • Input Fuses : 2x 10AT 250V. Line and Neutral Fused.

  • Power Factor : 0.99

  • Output Voltages : Output A: 13.2V 150W max. Output B: 13.2V 150W max. Outputs A and B are electrically independent and isolated from each other (When not switched together to provide 26.4V).
    Output C = A + B = 26.4V. Output D = 24V. Max power from Outputs C & D combined is 150W.

  • Output Protection : Fold-back current limiting.

  • Output Meters : Voltage: 0-30 V DC. Current: 0-10A DC.

  • Output Connectors : XLR Chassis as standard, but can be customised on request.

Available in a configuration to suit your needs. Please contact us with your requirements.
