HOME > PRODUCTS > TEST INSTRUMENTS > CAPACITY TESTER







Designed to assist users to identify failing batteries, and to easily perform regular capacity tests.

The Battery Capacity Tester is a self contained dual channel battery capacity tester. It has two independent, galvanically isolated discharge channels, allowing you to discharge two batteries simultaneously.

To unit will discharge the battery will a true constant current load until the battery is flat. Discharge will stop at a safe level. Uniquely, it draws its own power from the battery under test, making it fully portable. Built-in intelligence handles the entire process once started, no further user intervention is required. Relay outputs are provided for external control of auxiliary equipment, e.g. plotter.


  • Dual channel - can handle to two independent batteries simultaneously.

  • Any voltage from 12V to 30V.

  • Suitable for any battery chemistry.

  • True 1A discharge.

  • Built-in over-discharge protection to avoid damaging your battery.

  • Safe to use. The Capacity Tester derives its power from the battery under test. Does not need an AC supply.

  • Testing can be interrupted and resumed without loss of data.

  • Test results stored in a non-volatile memory.

  • Relay logic output to control plotters, chart recorders, charger etc. (extra interface may be required).

  • Rugged construction and extremely easy to use.

  • Compact and portable, use one anywhere!

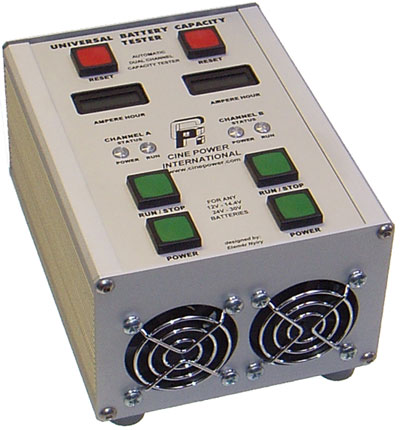

Battery Capacity Tester
